Hidrolik Silindir Boğaz Kepleri
GG25/GG26 kalite boğaz kepleri çelik dökümdür. DIN 1691 standartlarında üretilir.

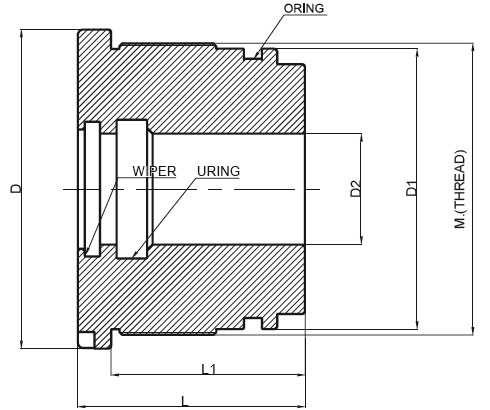

| Ürün | Nutring | Toz Keçesi | Oring | D | D1 | D2 | L | L1 | Diş |
|---|---|---|---|---|---|---|---|---|---|
| B-40X20 | 20x28x5 | 20x28x5/7 | 36x3 | 50 | 41 | 20 | 40 | 32 | 45x1,5 |
| B-40X22 | 22x30x6 | 22x30x5/7 | 36x3 | 50 | 41 | 22 | 40 | 32 | 45x1,5 |
| B-40X25 | 25x35x6 | 25x33x5/7 | 36x3 | 50 | 41 | 25 | 40 | 32 | 45x1,5 |
| B-40X28 | 28x38x6 | 28x36x5/7 | 36x3 | 50 | 41 | 28 | 40 | 32 | 45x1,5 |
| B-50X20 | 20x28x5 | 20x28x5/7 | 44,45x3,53 | 60 | 51 | 20 | 45 | 37 | 55x1,5 |
| B-50X25 | 25x35x6 | 25x33x5/7 | 44,45x3,53 | 60 | 51 | 25 | 45 | 37 | 55x1,5 |
| B-50X28 | 28x38x6 | 28x36x5/7 | 44,45x3,53 | 60 | 51 | 28 | 45 | 37 | 55x1,5 |
| B-50X30 | 30x40x8 | 30x38x5/7 | 44,45x3,53 | 60 | 51 | 30 | 45 | 37 | 55x1,5 |
| B-50X32 | 32x40x8 | 32x40x5/7 | 44,45x3,53 | 60 | 51 | 32 | 45 | 37 | 55x1,5 |
| B-50X35 | 35x45x8 | 35x43x5/7 | 44,45x3,53 | 60 | 51 | 35 | 45 | 37 | 55x1,5 |
| B-60X30 | 30x40x8 | 30x38x5/7 | 53,57x3,53 | 70 | 61 | 30 | 52 | 42 | 65x1,5 |
| B-60X35 | 35x45x8 | 35x43x5/7 | 53,57x3,53 | 70 | 61 | 35 | 52 | 42 | 65x1,5 |
| B-60X40 | 40x50x10 | 40x48x5/7 | 53,57x3,53 | 70 | 61 | 40 | 52 | 42 | 65x1,5 |
| B-60X45 | 45x55x10 | 45x55x5/7 | 53,57x3,53 | 70 | 61 | 45 | 52 | 42 | 65x1,5 |
| B-63X30 | 30x40x8 | 30x38x5/7 | 57,15x3,53 | 75 | 64 | 30 | 52 | 42 | 69x1,5 |
| B-63X35 | 35x45x8 | 35x43x5/7 | 57,15x3,53 | 75 | 64 | 35 | 52 | 42 | 69x1,5 |
| B-63X40 | 40x50x10 | 40x48x5/7 | 57,15x3,53 | 75 | 64 | 40 | 52 | 42 | 69x1,5 |
| B-63X45 | 45x55x10 | 45x55x5/7 | 57,15x3,53 | 75 | 64 | 45 | 52 | 42 | 69x1,5 |
| B-65X35 | 35x45x8 | 35x43x5/7 | 59,92x3,53 | 80 | 66 | 35 | 63 | 52 | 70x1,5 |
| B-65X40 | 40x50x10 | 40x48x5/7 | 59,92x3,53 | 80 | 66 | 40 | 63 | 52 | 70x1,5 |
| B-70X30 | 30x40x8 | 30x38x5/7 | 65,10x3,53 | 85 | 71 | 30 | 63 | 52 | 75x2 |
| B-70X35 | 35x45x8 | 35x43x5/7 | 65,10x3,53 | 85 | 71 | 35 | 63 | 52 | 75x2 |
| B-70X40 | 40x50x10 | 40x48x5/7 | 65,10x3,53 | 85 | 71 | 40 | 63 | 52 | 75x2 |
| B-70X45 | 45x55x10 | 45x55x5/7 | 65,10x3,53 | 85 | 71 | 45 | 63 | 52 | 75x2 |
| B-70X50 | 50x60x10 | 50x60x5/7 | 65,10x3,53 | 85 | 71 | 50 | 63 | 52 | 75x2 |
| B-70X55 | 55x65x10 | 55x65x5/7 | 65,10x3,53 | 85 | 71 | 55 | 63 | 52 | 75x2 |
| B-80X40 | 40x50x10 | 40x48x5/7 | 74x4 | 95 | 81 | 40 | 63 | 52 | 85x2 |
| B-80X45 | 45x55x10 | 45x55x5/7 | 74x4 | 95 | 81 | 45 | 63 | 52 | 85x2 |
| B-80X50 | 50x60x10 | 50x60x5/7 | 74x4 | 95 | 81 | 50 | 63 | 52 | 85x2 |
| B-80X55 | 55x65x10 | 55x65x5/7 | 74x4 | 95 | 81 | 55 | 63 | 52 | 85x2 |
| B-80X60 | 60x70x10 | 60x70x5/7 | 74x4 | 95 | 81 | 60 | 63 | 52 | 85x2 |
| B-90X40 | 40x50x10 | 40x48x5/7 | 84x4 | 105 | 91 | 40 | 63 | 52 | 95x2 |
| B-90X45 | 45x55x10 | 45x55x5/7 | 84x4 | 105 | 91 | 45 | 63 | 52 | 95x2 |
| B-90X50 | 50x60x10 | 50x60x5/7 | 84x4 | 105 | 91 | 50 | 63 | 52 | 95x2 |
| B-90X55 | 55x65x10 | 55x65x5/7 | 84x4 | 105 | 91 | 55 | 63 | 52 | 95x2 |
| B-90X60 | 60x70x10 | 60x70x5/7 | 84x4 | 105 | 91 | 60 | 63 | 52 | 95x2 |
| B-90X70 | 70x80x10 | 80x70x5/7 | 84x4 | 105 | 91 | 70 | 63 | 52 | 95x2 |
| B-100X40 | 40x50x10 | 40x48x5/7 | 90x5 | 115 | 101 | 40 | 82 | 70 | 105x2 |
| B-100X45 | 45x55x10 | 45x55x5/7 | 90x5 | 115 | 101 | 45 | 82 | 70 | 105x2 |
| B-100X50 | 50x60x10 | 50x60x5/7 | 90x5 | 115 | 101 | 50 | 82 | 70 | 105x2 |
| B-100X55 | 55x65x10 | 55x65x5/7 | 90x5 | 115 | 101 | 55 | 82 | 70 | 105x2 |
| B-100X60 | 60x70x10 | 60x70x5/7 | 90x5 | 115 | 101 | 60 | 82 | 70 | 105x2 |
| B-100X65 | 65x75x10 | 65x75x5/7 | 90x5 | 115 | 101 | 65 | 82 | 70 | 105x2 |
| B-100X70 | 70x80x12 | 70x80x5/7 | 90x5 | 115 | 101 | 70 | 82 | 70 | 105x2 |
| B-100X75 | 75x85x12 | 75x87x12/7 | 90x5 | 115 | 101 | 75 | 82 | 70 | 105x2 |
| B-100X80 | 80x90x12 | 80x92x12/7 | 90x5 | 115 | 101 | 80 | 82 | 70 | 105x2 |
| B-110X60 | 60x70x10 | 60x70x5/7 | 100x5 | 130 | 111 | 60 | 82 | 70 | 115x2 |
| B-110X65 | 65x75x10 | 65x75x5/7 | 100x5 | 130 | 111 | 65 | 82 | 70 | 115x2 |
| B-110X70 | 70x80x12 | 70x80x5/7 | 100x5 | 130 | 111 | 70 | 82 | 70 | 115x2 |
| B-110X80 | 80x90x12 | 80x92x12/7 | 100x5 | 130 | 111 | 80 | 82 | 70 | 115x2 |
| B-120X60 | 60x70x10 | 60x70x5/7 | 110x5 | 140 | 121 | 60 | 82 | 70 | 125x2 |
| B-120X65 | 65x75x10 | 65x75x5/7 | 110x5 | 140 | 121 | 65 | 82 | 70 | 125x2 |
| B-120X70 | 70x80x12 | 70x80x5/7 | 110x5 | 140 | 121 | 70 | 82 | 70 | 125x2 |
| B-120X80 | 80x90x12 | 80x92x7/12 | 110x5 | 140 | 121 | 80 | 82 | 70 | 125x2 |
| B-120X90 | 90x100x12 | 90x102x7/12 | 110x5 | 140 | 121 | 90 | 82 | 70 | 125x2 |
